Fits TVs
50" to 90"
VESA Range
200x100mm to 800x400mm
Extension
29"
Tilt +5°/-15°
Swivel +/-60°
Weight Capacity
132 lbs

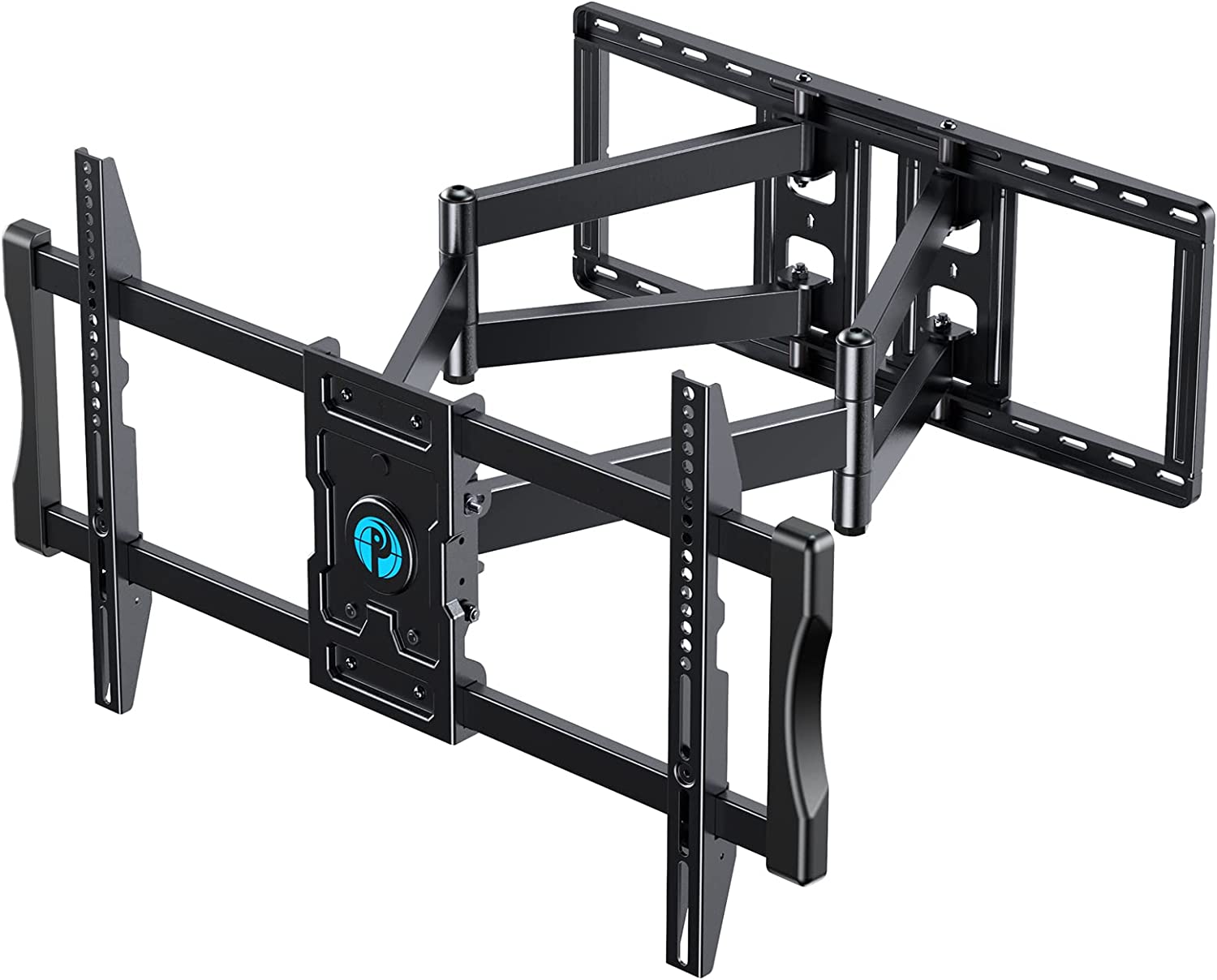

1. PIXF2 full-motion design enables you to adjust the angle of your TV based on your viewing position in the room.
2. Extends from 3.78" to 29". Bring the action closer and get the right TV position for any seating arrangement or activity.
3.Features +5°/-15° tilt, up to +/-60° swivel (depending on TV size), and +/-3° leveling after installation for optimum viewing.

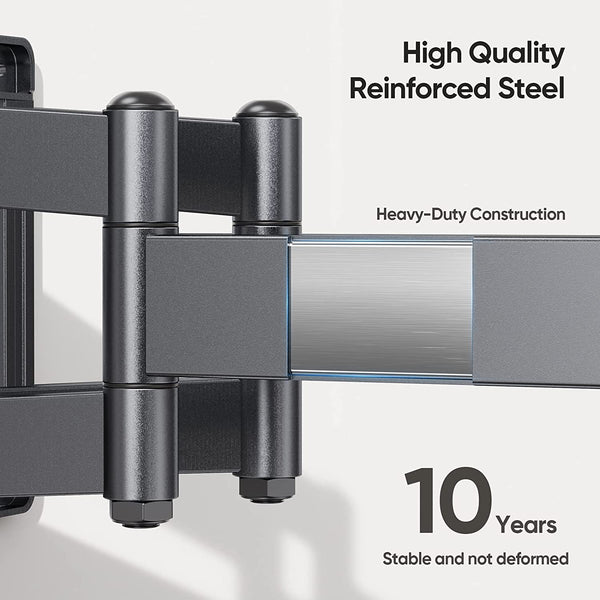

4. Dual articulating arms for added strength to hold your TV with a weight capacity of 132 lbs.
5. Universal VESA compatibility from 200x100mm to 800x400mm.

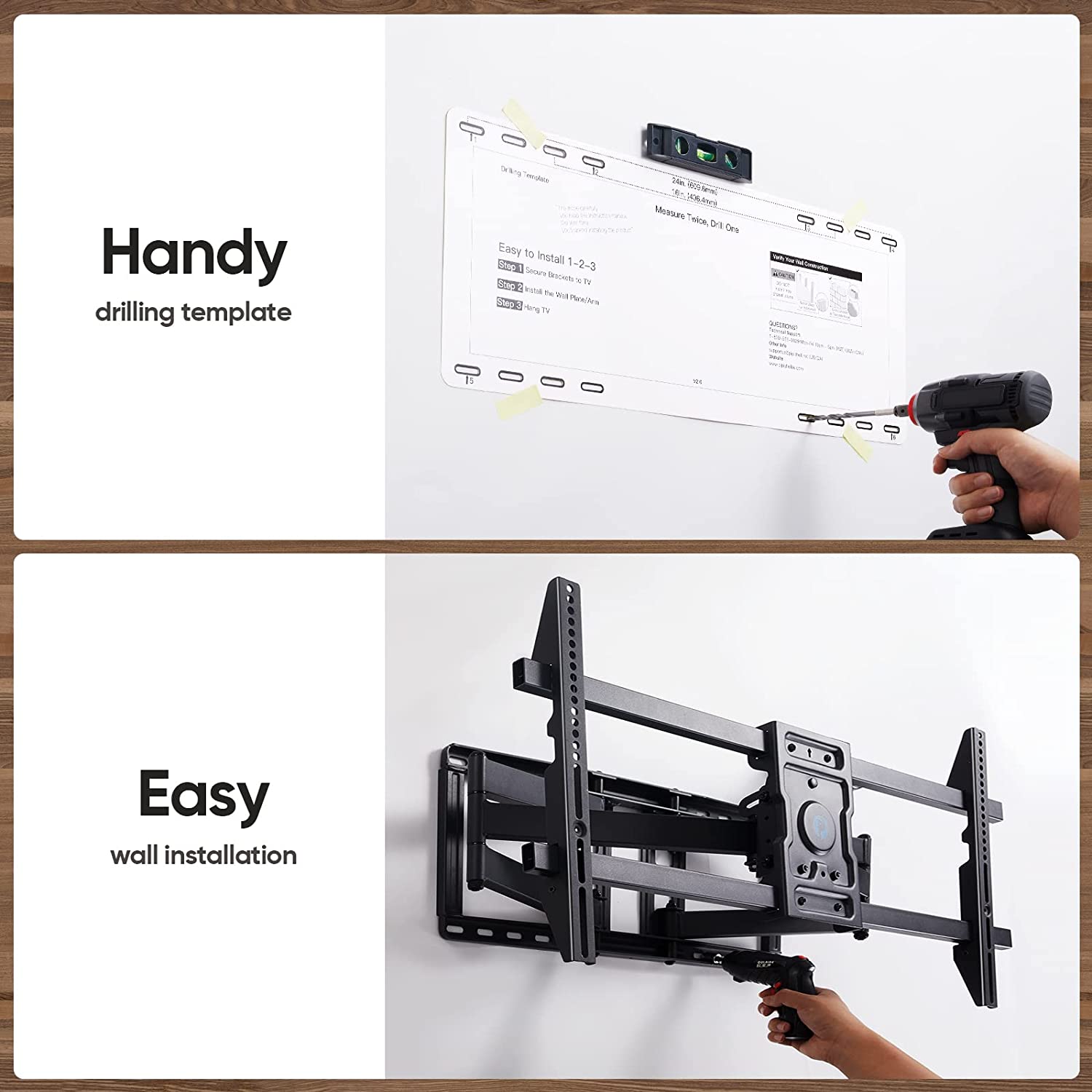

6. Mounting hardware and a detailed illustrated installation manual is included.
7. 5-year Limited warranty and professional US-based Product Support.
Product Compatibility | |
Brand | PIPISHELL |
Model Number | PIXF2 |
Type | Full motion |
TV Size Range |
50" to 90"
|
Maximum TV Weight | 132 lbs |
VESA Range | 200x100mm/200x200mm/200x300mm/200x400mm/300x200mm/300x300mm/300x400//400x200mm/400x300mm/400x400mm/500x400/600x400mm/700x400mm/800x400mm |
Wall Type | Wood Studs 16", 18", 24"on Center, Concrete and Block Walls |
Product Information | |
Swivel | +/-60° |
Tilt | +5°/-15° |
Profile | 3.78" |
Extension | 29" |
Level | +/-3° |
Wallplate Dimensions | 25.83" x 10.22" |
Product Weight | 25.95 lbs |
Package Dimension | 38.98" x 12.6" x 5.12" |
The PIXF2 full motion TV wall mount allows you to maximize the potential of your large 85” or 90” television. Investing in a swivel TV wall mount can save space in your room by moving your equipment away from furniture and up onto the wall for a cleaner look.
