Fits TVs
37" to 75"
VESA Range
200x100mm to 600x400mm
Extension
16.09"
Tilt +5°/-15°
Swivel +/-45°
Weight Capacity
110 lbs

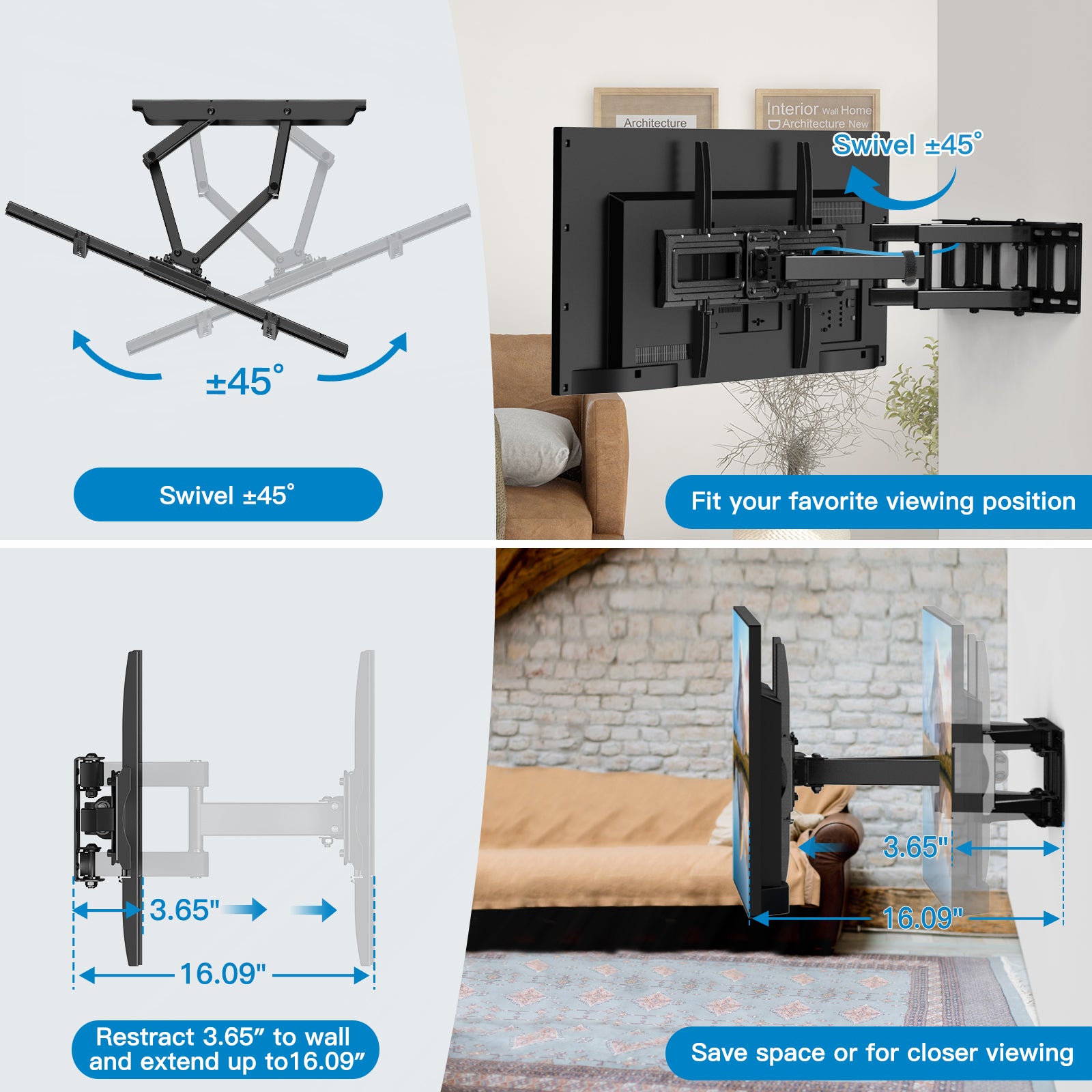

1. Low-profile design that retracts from 16.09" to 3.65", so you can view entertainment up close and retract away when not in use.

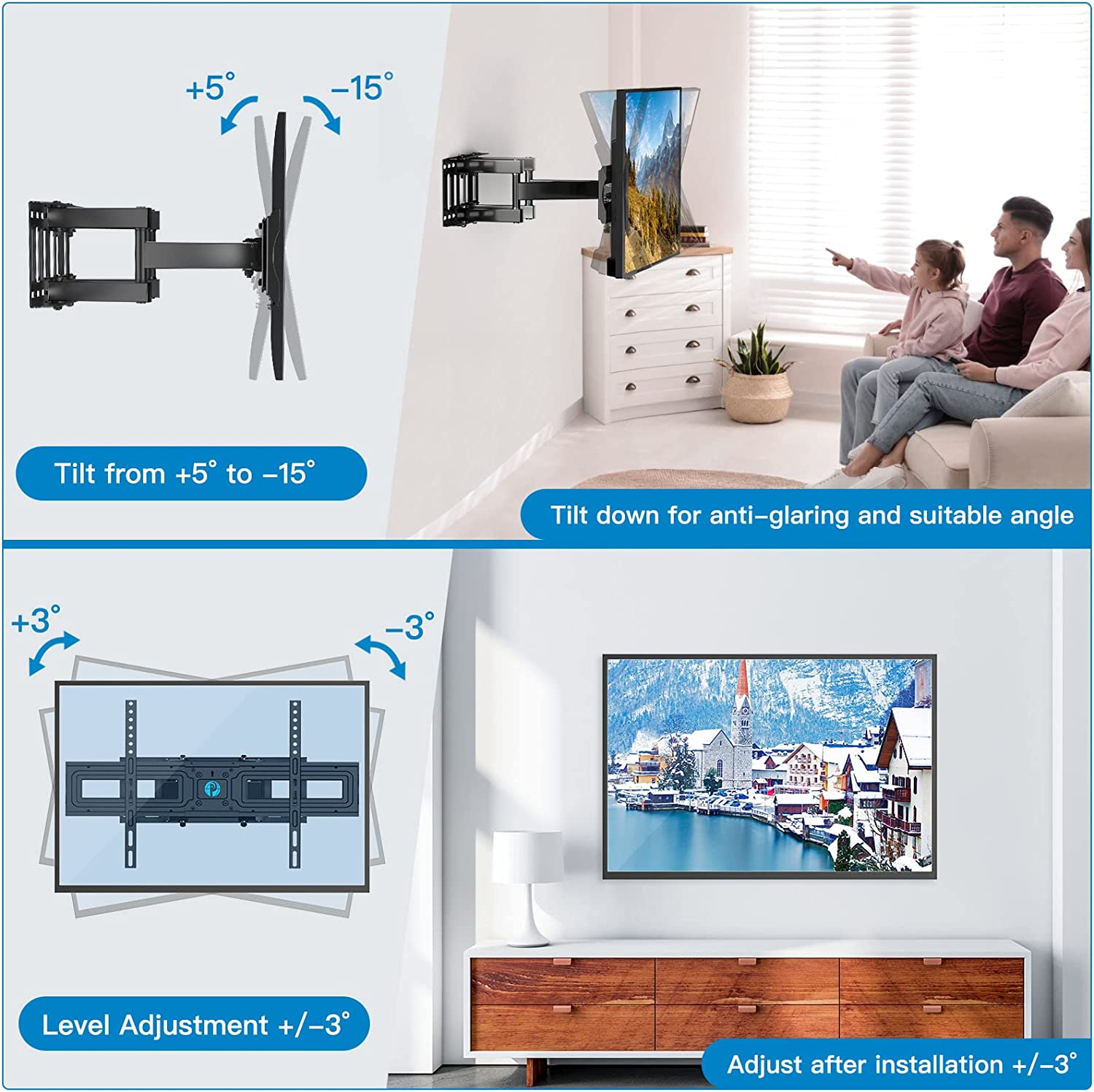

2. Maximum flexibility tilt +5°/-15°, swivels +/-45° (max. swivel angle depends on TV size) and level adjusts +/-3° for perfect placement.

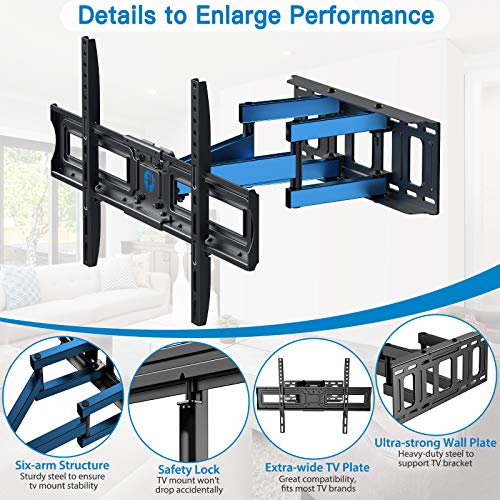

3. PILFK4 is built with dual articulating arms for added strength to hold up larger TVs.
4. Easy installation that includes mounting hardware and a detailed illustrated installation manual that is actually useful.
5. We provide a 5-year warranty and professional US-based customer service.
Product Compatibility | |
Brand | PIPISHELL |
Model Number | PILFK4 |
Type | Full Motion |
TV Size Range | 37" to 75" |
Maximum TV Weight | 110 lbs |
VESA Range | 200x100mm, 200x200mm, 200x300mm, 200x400mm, 300x200mm, 300x300mm, 300x400mm, 400x200mm, 400x300mm, 400x400mm, 500x400mm, 600x400mm |
Wall Type | Wood Studs 16 on Center, Concrete and Block Walls |
Product Information | |
Swivel | +/-45° |
Tilt | +5°/-15° |
Profile | 3.65" |
Extension | 16.09" |
Level | +/-3° |
Wallplate Dimensions | 16.93" x 5.94" |
Product Weight | 12.5 lbs |
Package Dimension | 17.72" x 7.8" x 3.74" |
