Fits TVs
26" to 55"
VESA Range
75x75mm to 400x400mm
Extension
17"
Tilt +5°/-15°
Swivel +/-90°
Weight Capacity
66 lbs

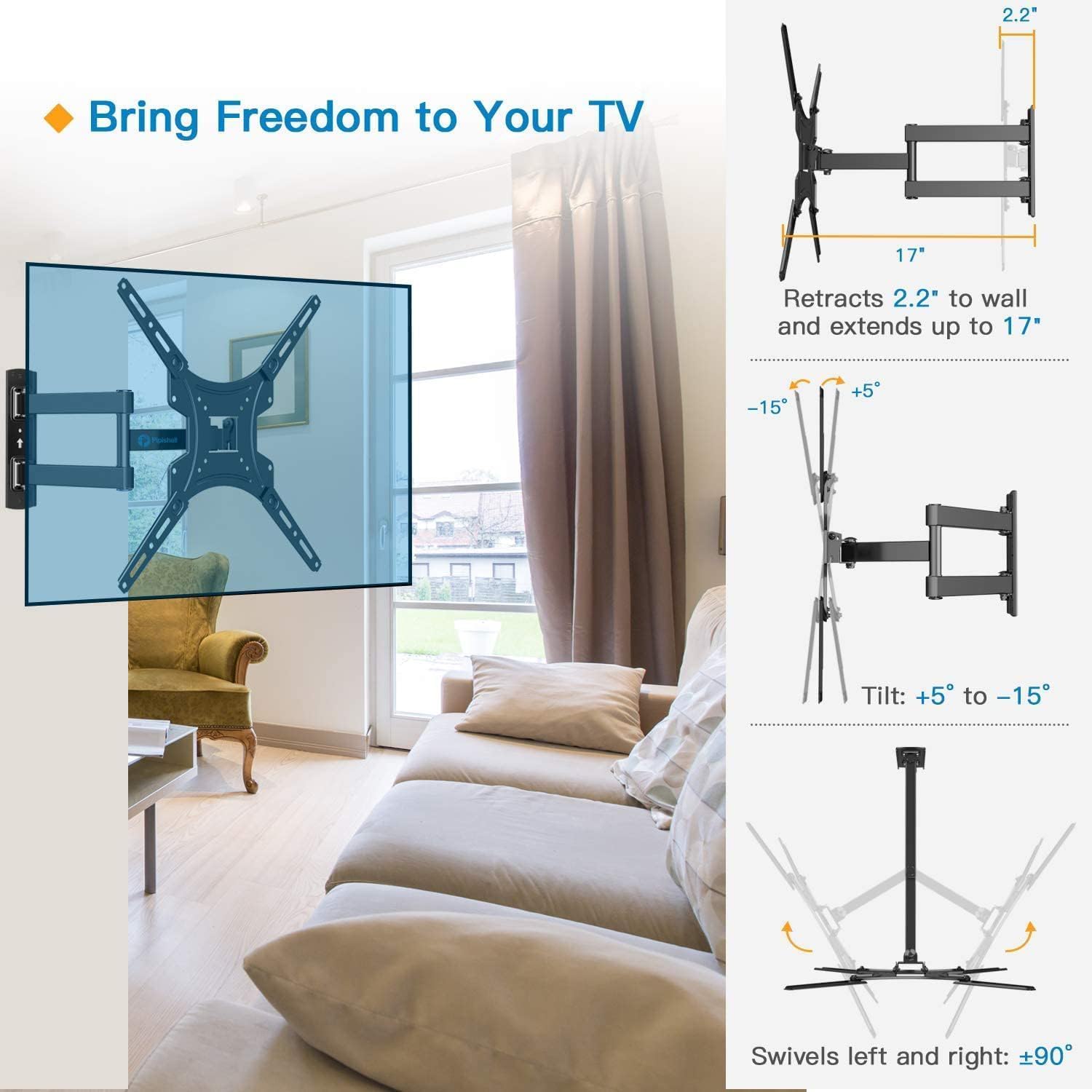

1. Low-profile design that retracts from 17" to 2.2", so you can view entertainment up close and retract away when not in use.
2. Maximum flexibility tilt +5°/-15°, swivels +/-90° (max. swivel angle depends on TV size).
3. PIMF2 TV mount can also be used as a monitor wall mount that allows extra desktop space while greatly improving body posture.

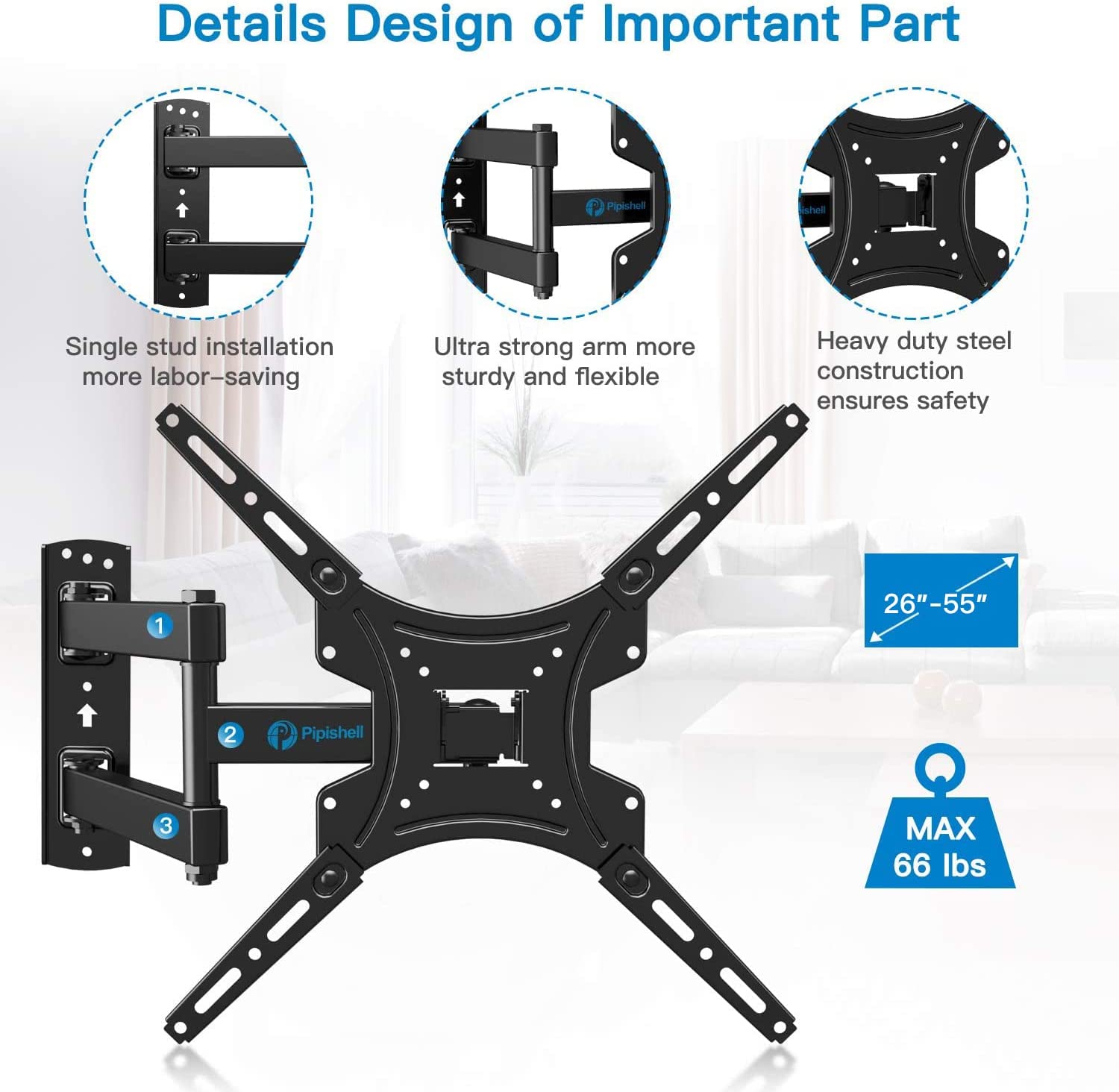

4. Easy installation that includes mounting hardware and a detailed illustrated installation manual that is actually useful.
5. We provide a 5-year warranty and professional US-based customer service.
Product Compatibility | |
Brand | PIPISHELL |
Model Number | PIMF2 |
Type | Full Motion |
TV Size Range | 26" to 55" |
Maximum TV Weight | 66 lbs |

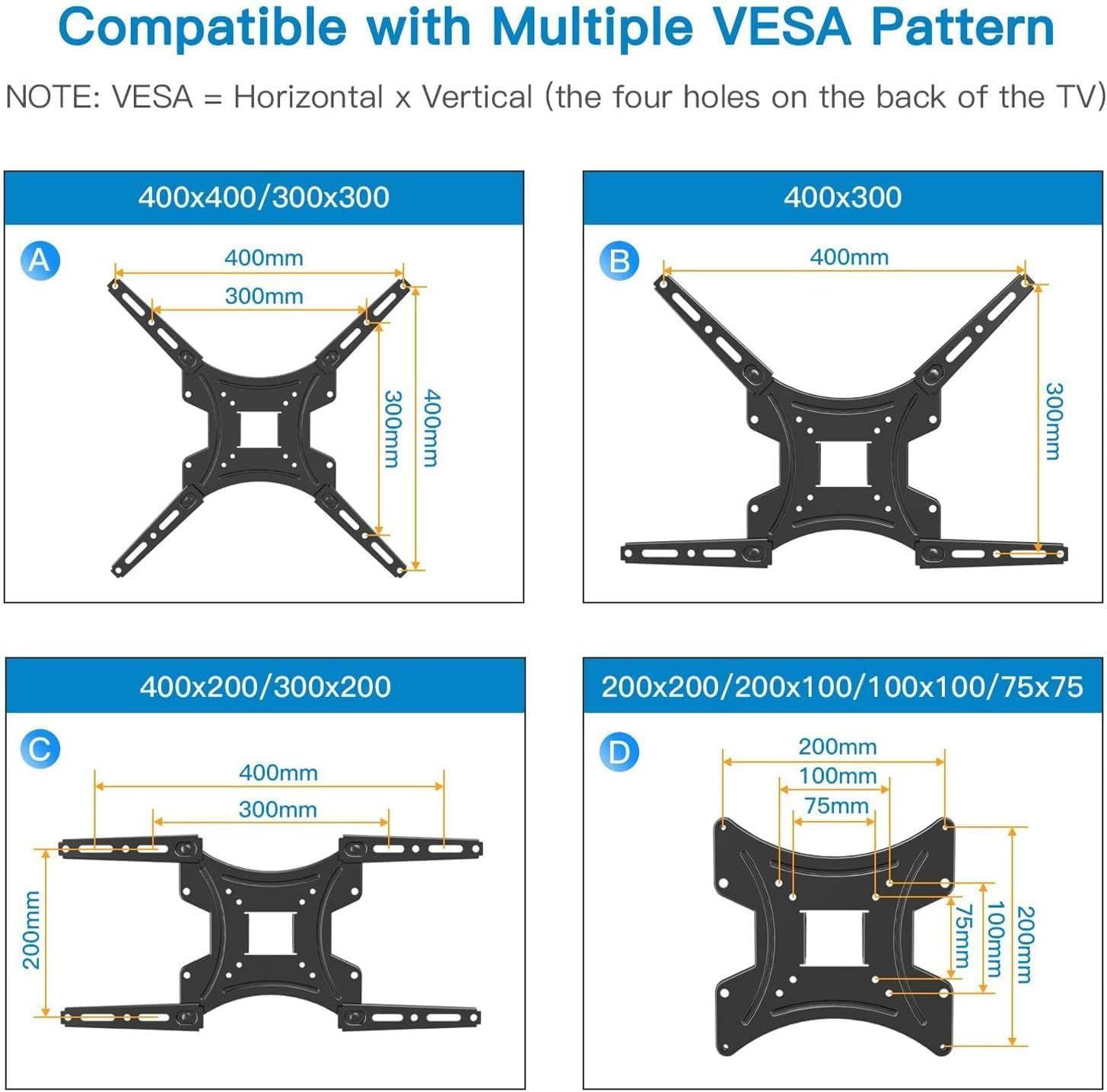

VESA Range | 75x75mm/100x100mm/200x100mm/200x200mm/200x300mm/300x200mm/300x300mm/400x200mm/300x400mm/400x300mm/400x400mm |

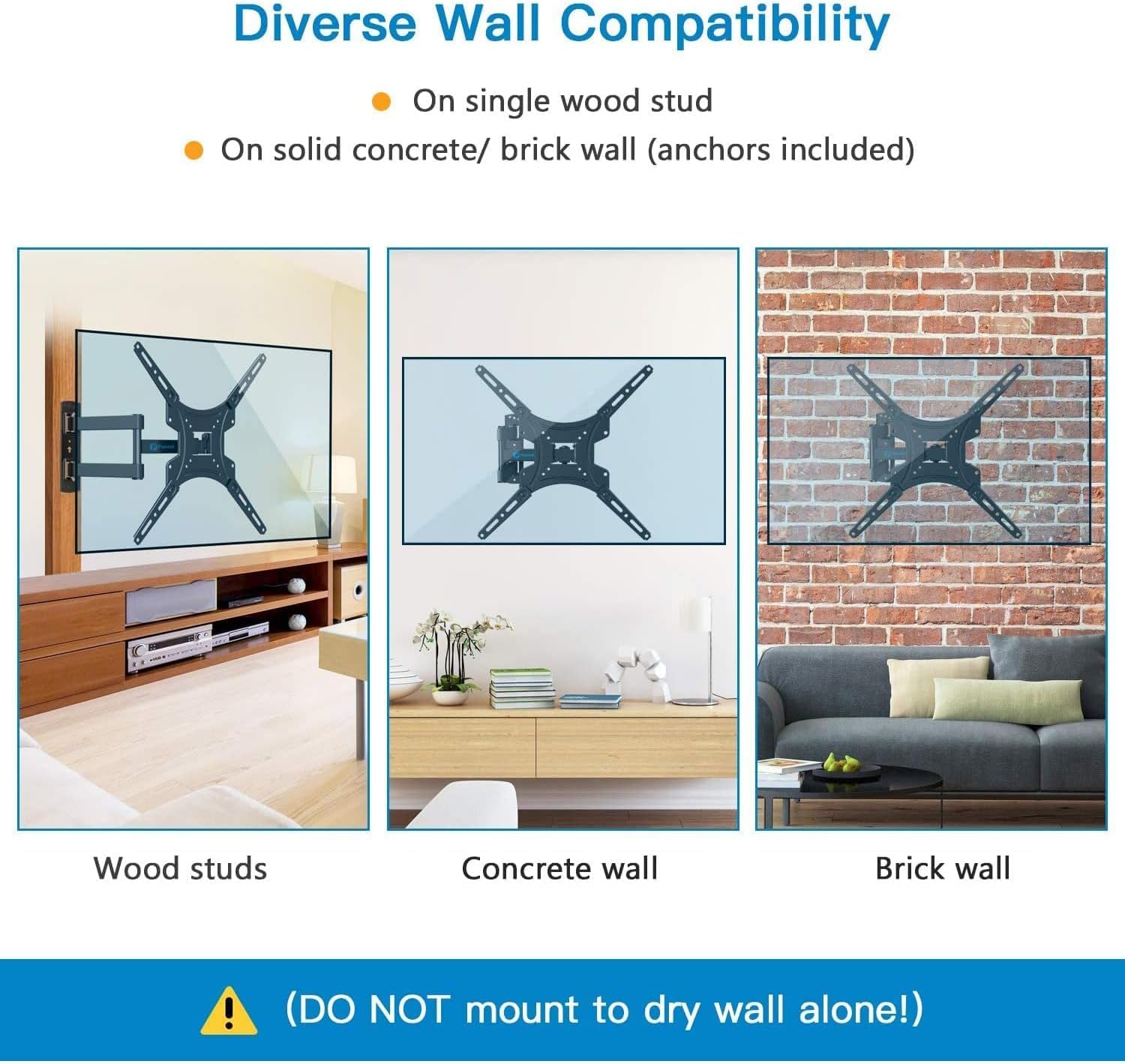

Wall Type | Wood Stud, Concrete and Block Walls |
Product Information | |
Swivel | +/-90° |
Tilt | +5°/-15° |
Profile | 2.2" |
Extension | 17" |
Level | +/-3° |
Wallplate Dimensions | 9.05" x 2.16" |
Product Weight | 3.79 lbs |
Package Dimension | 10.98" x 9.06" x 2.68" |
