Fits TVs
26" to 60"
VESA Range
75x75mm to 400x400mm
Extension
18.7"
Tilt +5°/-15°
Swivel +/-90°
Weight Capacity
77 lbs
1. PIMF11 full-motion mount design enables you to adjust the angle of your TV based on your viewing position in the room.

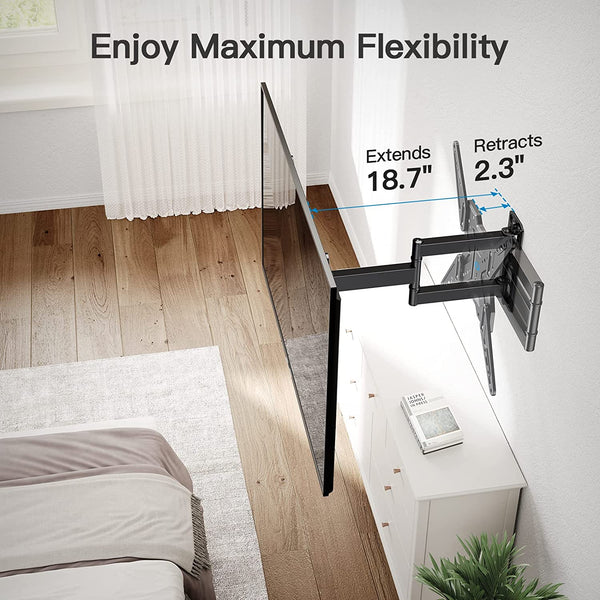

2. Its low-profile design creates space in your room and can extend from 2.3" to 18.7" from the wal.
3. Maximum flexibility tilt +5°/-15°, swivels +/-90° (max. swivel angle depends on TV size) and and level adjusts +/-3° for perfect placement.
4. VESA compatible from 75x75mm to 400x400mm with a weight capacity of 77 lbs.
5. Easy installation that includes mounting hardware and a detailed illustrated installation manual.
6. 5-year Limited warranty and professional US-based Product Support.
| Product Compatibility | |
| Brand | PIPISHELL |
| Model Number | PIMF11 |
| Type | Full Motion |
| TV Size Range | 26" to 60" |
| Maximum TV Weight | 77 lbs |
| VESA Range | 75x75mm, 100x100mm, 150x150mm, 100x200mm, 200x100mm, 200x200mm, 200x300mm, 200x400mm, 300x200mm, 300x250mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm |
| Wall Type | Wood Stud, Concrete and Block Walls |
| Product Information | |
| Swivel | +/-90° |
| Tilt | +5°/-15° |
| Profile | 2.3" |
| Extension | 18.7" |
| Level | +/-3° |
| Wall Plate Dimensions | 9.05" x 3.35" |
| Product Weight | 6.59 lbs |
| Package Dimension | 11.10" x 9.44" x 2.55" |

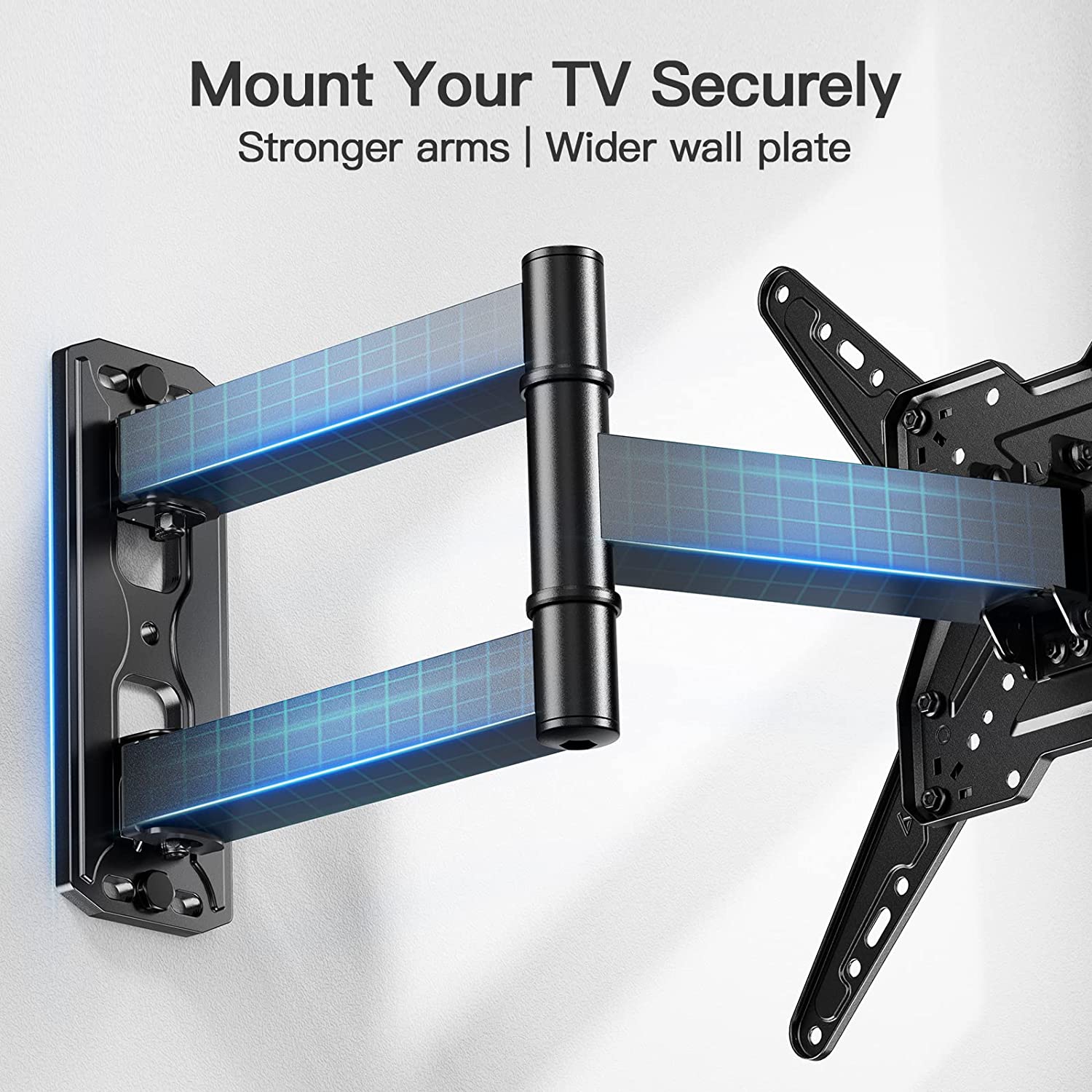

This sturdy full motion TV mount can extend, swivel, and tilt to allow flexible positioning of your TV for the best angle. The single-stud design, included mounting hardware, and detailed instructions help to make installation a breeze.
A TV wall mount is a great solution to keep your TV and connections out of reach from children and pets. If you often have young ones playing in the house, enjoy peace of mind knowing that your TV is mounted securely on the wall.
The high-quality TV bracket fits most 26"to 60" TVs up to 77 lbs with VESA patterns 75x75 to 400x400mm. Make sure to verify that the wall type where you plan to mount the TV consists of wood stud framing, concrete, or brick to ensure compatibility with the hardware.
