Fits TVs
50" to 95"
VESA Range
200x100mm to 800x600mm
Extension
29.18"

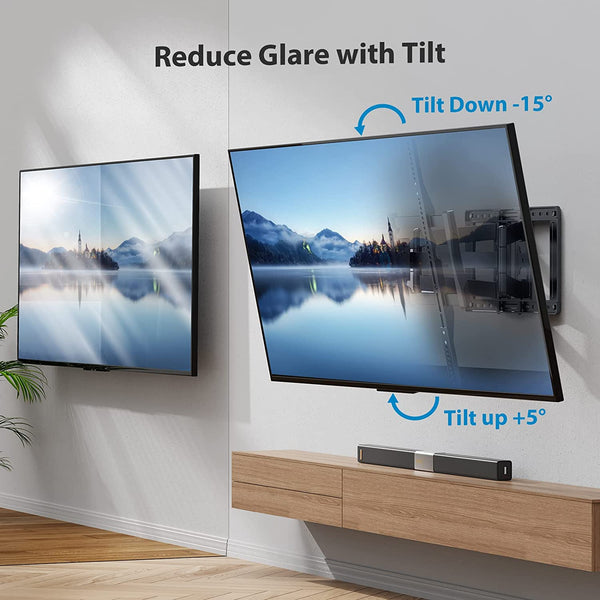

Tilt +5°/-15°

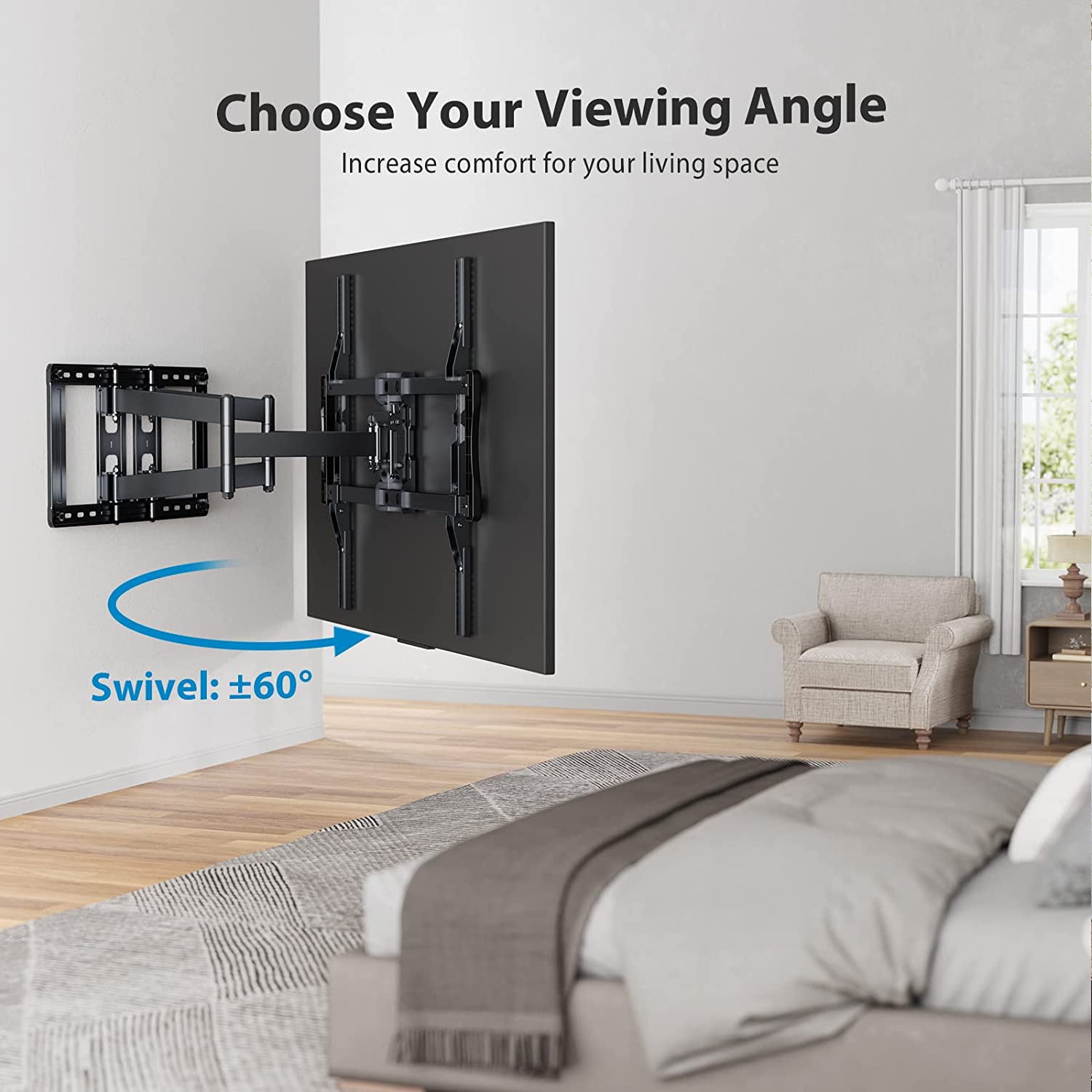

Swivel +/-60°
Weight Capacity
132 lbs
1. PIXF3 full-motion design enables you to adjust the angle of your TV based on your viewing position in the room.

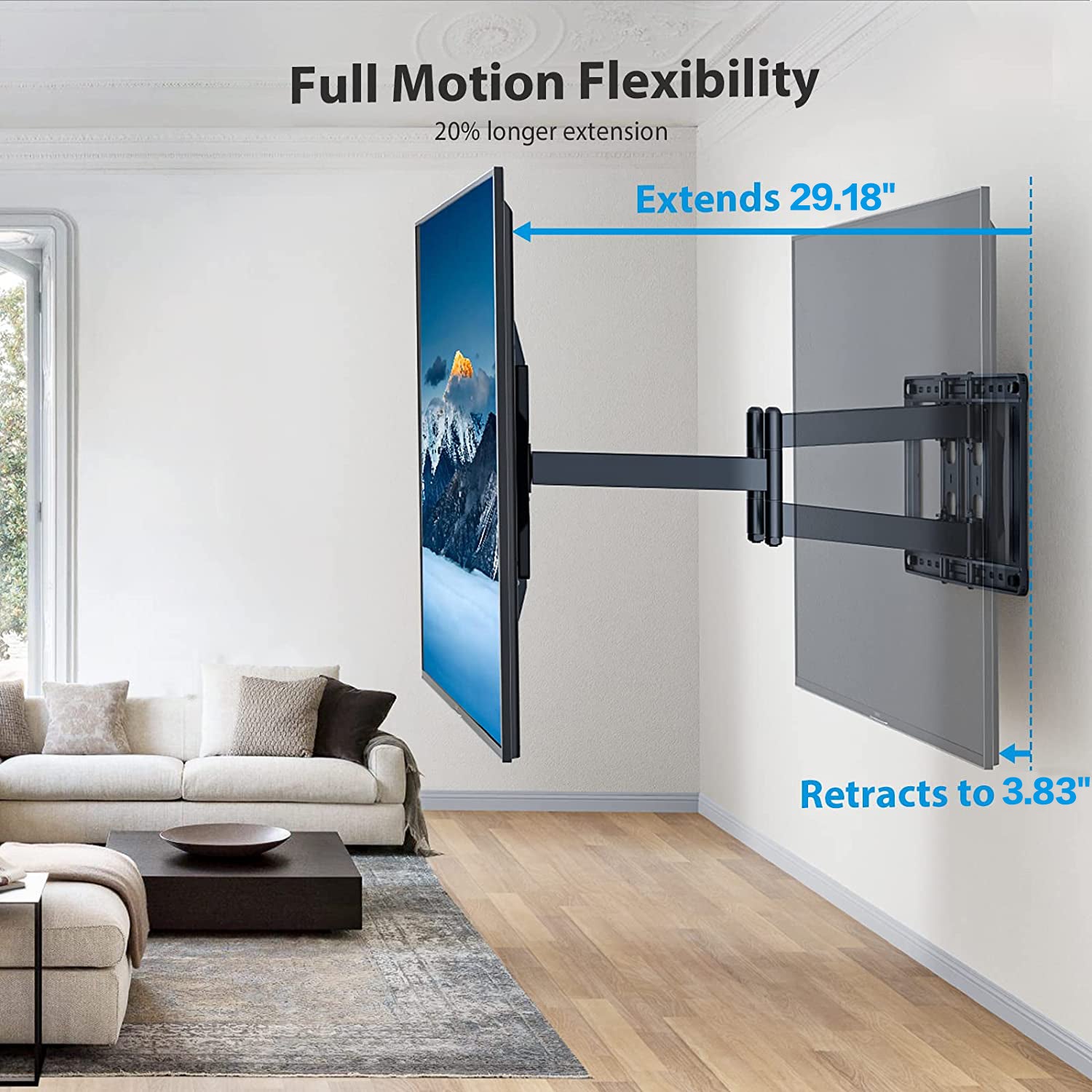

2. Low-profile design extends from 3.83" to 29.18" from the wall which creates space in the room.
3. Maximum flexibility tilt +5°/-15°, swivels +/-60° (max. swivel angle depends on TV size) and and level adjusts +/-3° for perfect placement.
4. VESA compatible from 200x100mm to 800x600mm with a weight capacity of 132 lbs.

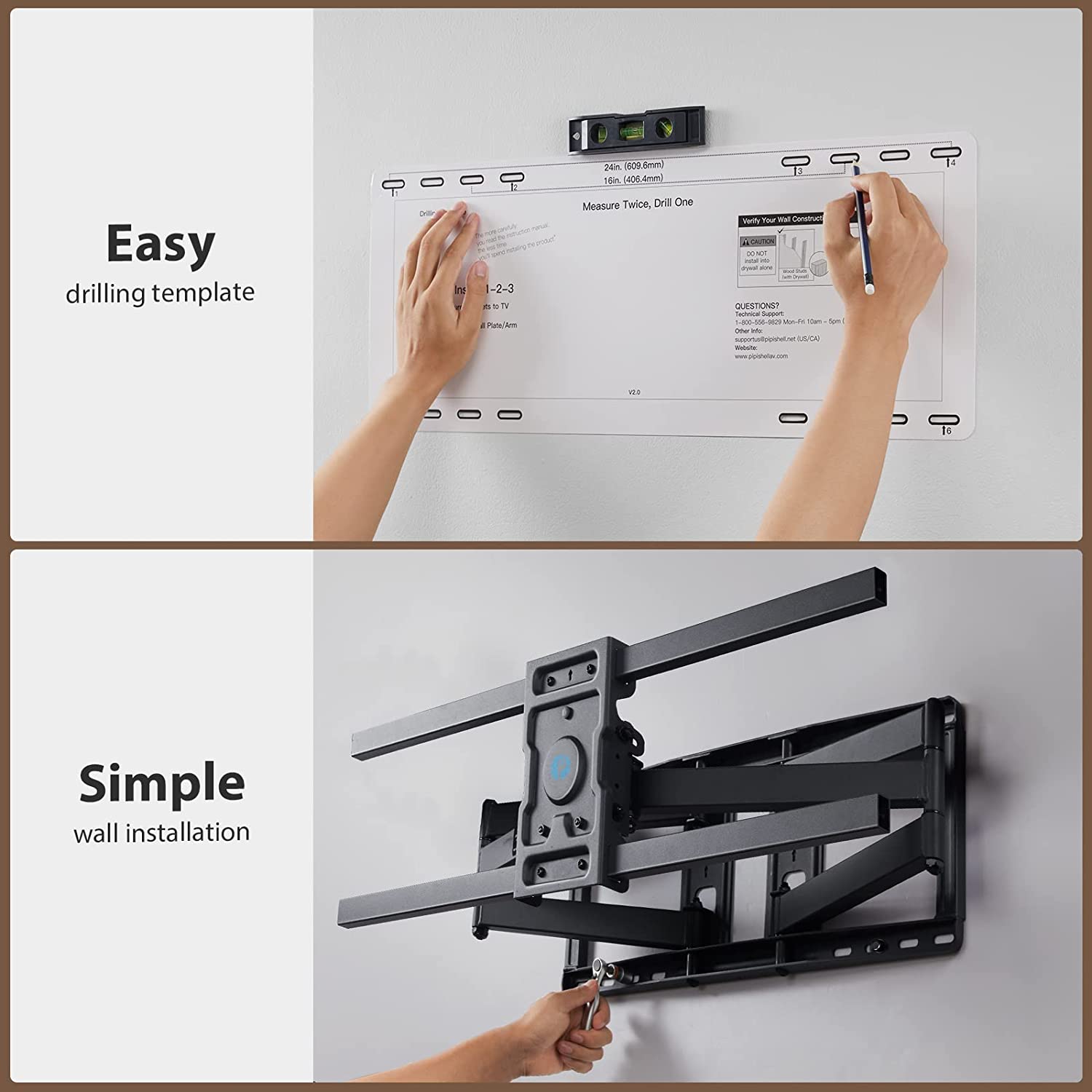

5. Easy installation that includes mounting hardware and a detailed illustrated installation manual that is actually useful.
6. 5-year Limited warranty and professional US-based Product Support.
Product Compatibility | |
Brand | PIPISHELL |
Model Number |
PIXF3
|
Type | Full motion |
TV Size Range |
50" to 95"
|
Maximum TV Weight | 132 lbs |
VESA Range | 200x100mm, 200x200mm, 200x300mm, 200x400mm, 300x200mm, 300x300mm, 300x400mm, 400x200mm, 400x300mm, 400x400mm, 500x400mm, 600x400mm, 700x400mm, 800x400mm, 800x600mm |
Wall Type | Wood Studs 16", 18", 24"on Center, Concrete and Block Walls |
Product Information | |
Swivel | +/-60° |
Tilt | +5°/-15° |
Profile | 3.83" |
Extension | 29.18" |
Level | +/-3° |
Wallplate Dimensions | 25.79" x 10.24" |
Product Weight | 27.07 lbs |
Package Dimension | 17.4" x 10.12" x 2.56" |
