Fits TVs
26" to 55"
VESA Range
100x100mm to 400x400mm

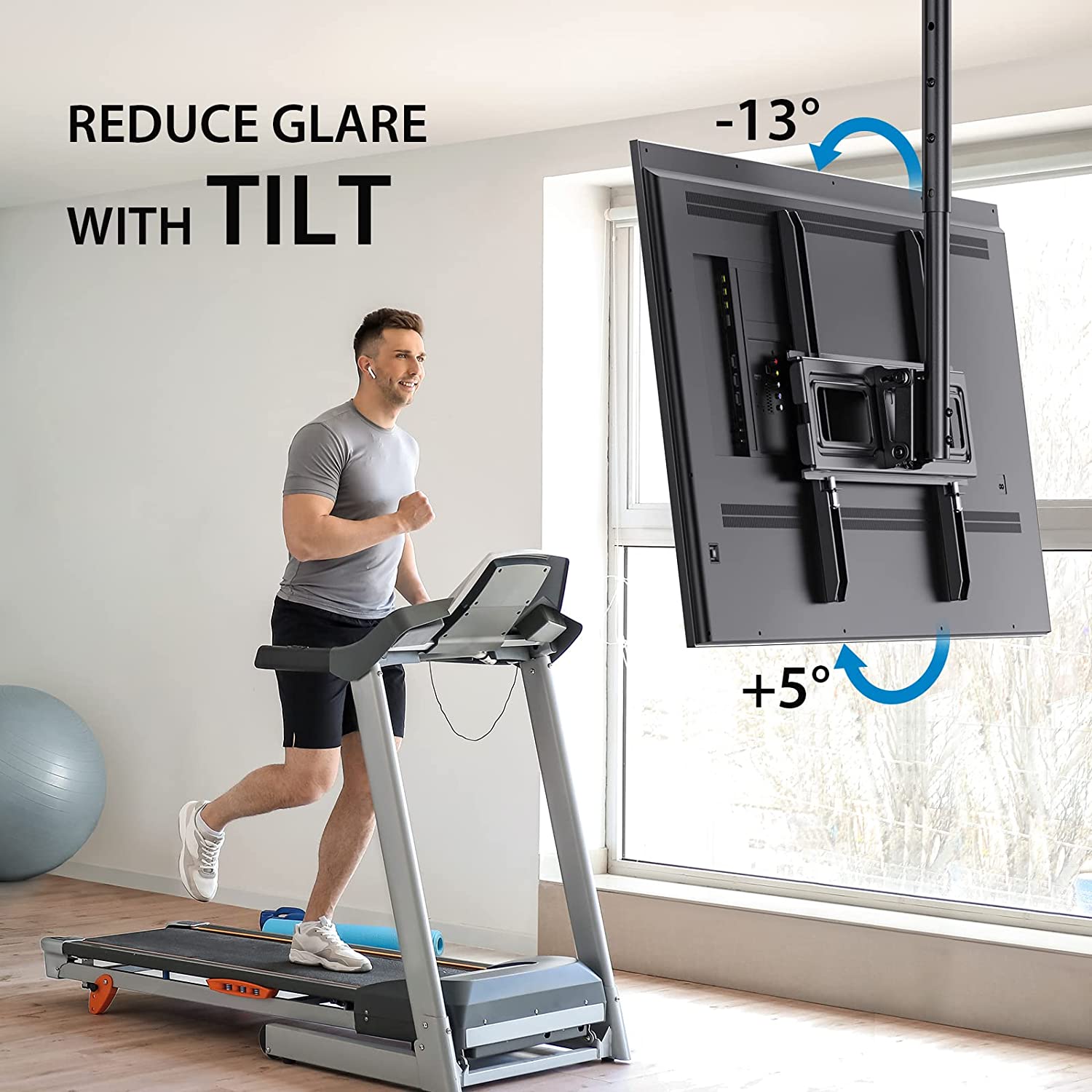

Tilt +5°/-13°

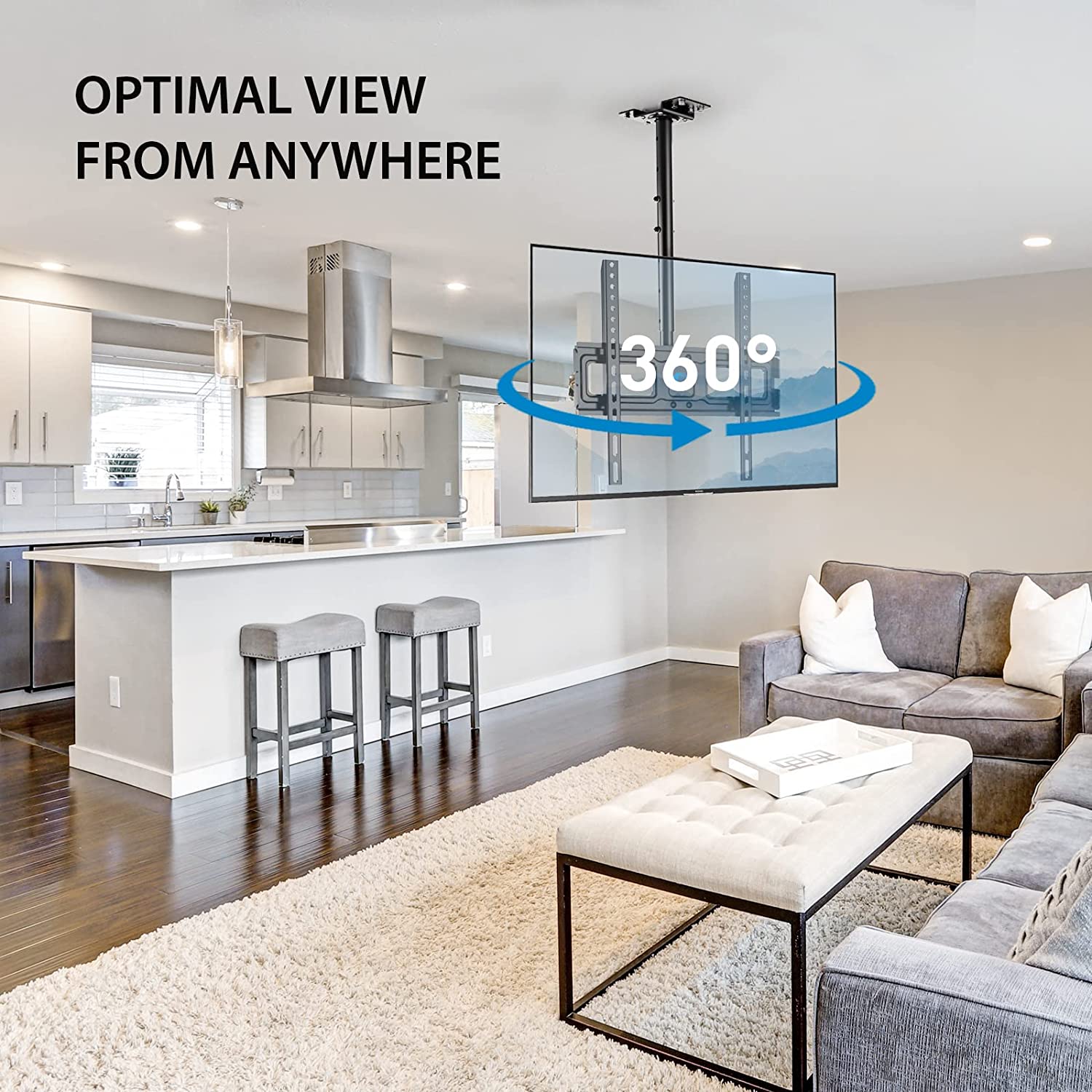

Swivel 360°
Weight Capacity
60 lbs

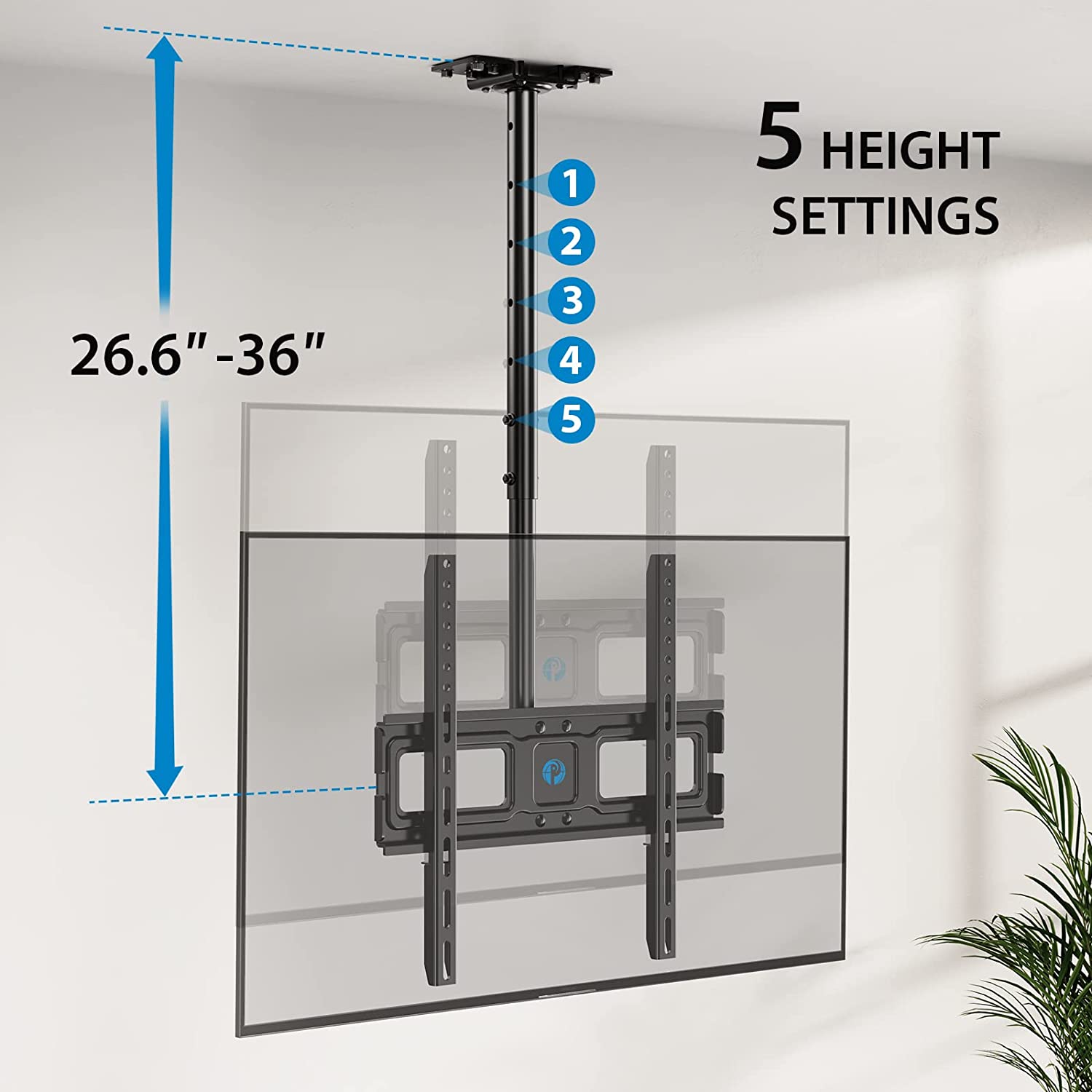

Adjustable Height
26.6" to 36"
1. PICM2 has 5 height adjustments form 5 height adjustments between 26.6" to 36" from the ceiling to the center of TV plate to provide height range flexibility.
2. Universal VESA mounting plate adjust from 100x100mm to 400x400mm. Weight Capacity 60 lbs.

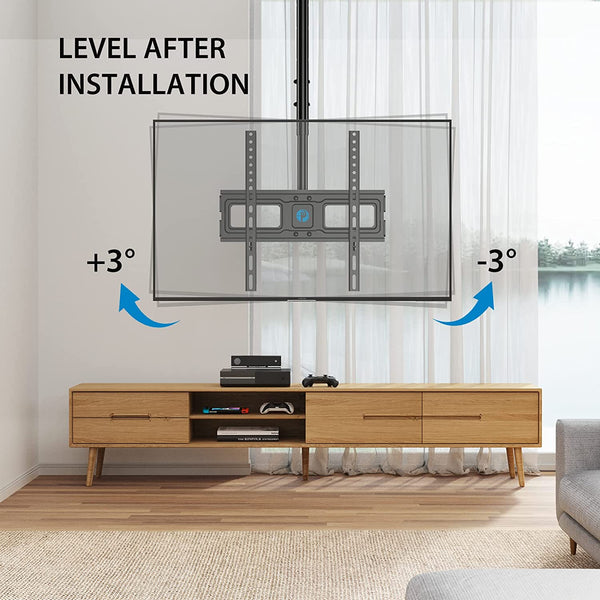

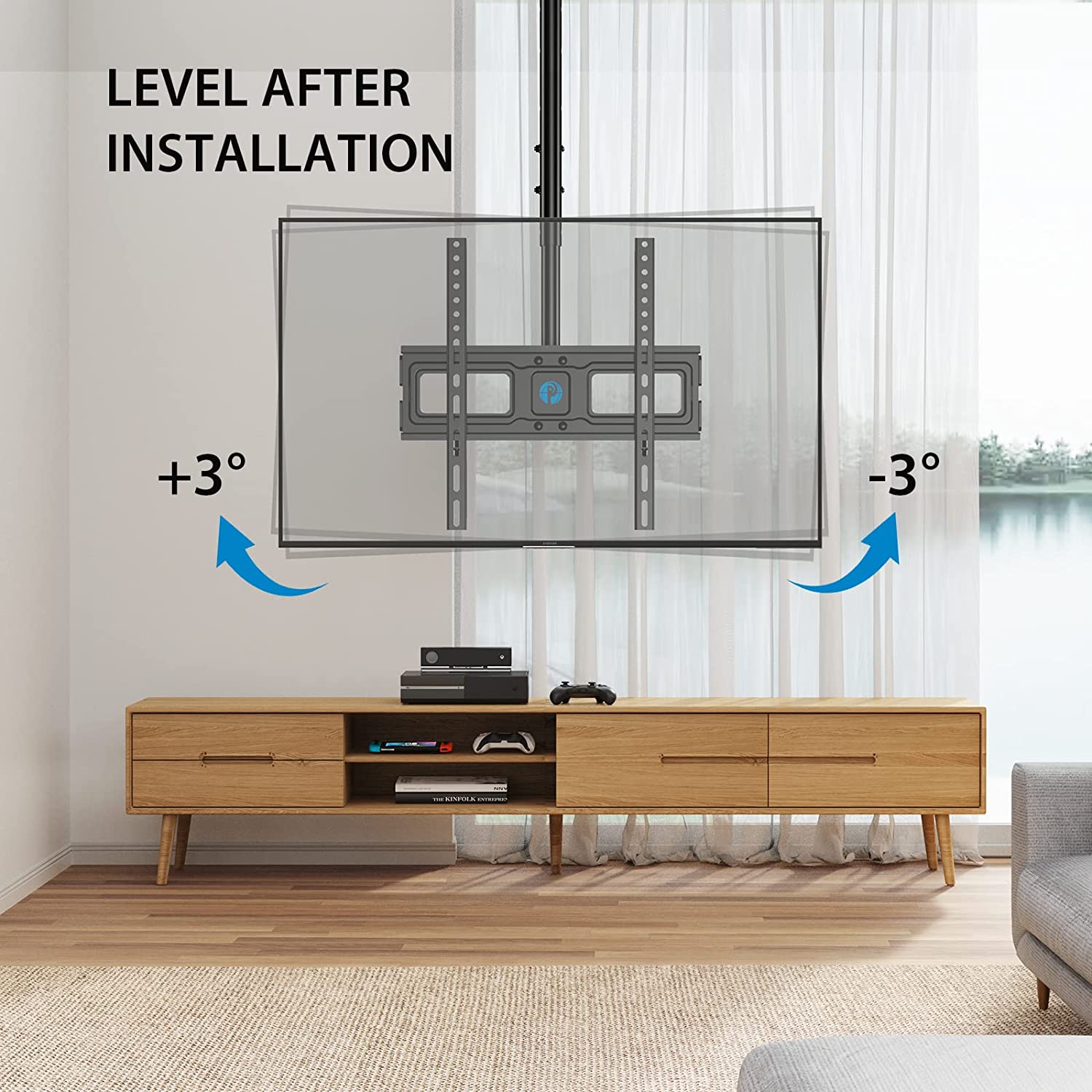

3. Adjustments Include +5°/-13° tilt, 360° swivel, and +/-3° leveling after installation.
4. Easy installation that includes mounting hardware and a detailed illustrated installation manual that is actually useful.
5. We provide a 5-year warranty and professional US-based customer service.
Product Compatibility | |
Brand | PIPISHELL |
Model Number |
PICM2
|
Type | Ceiling Mount |

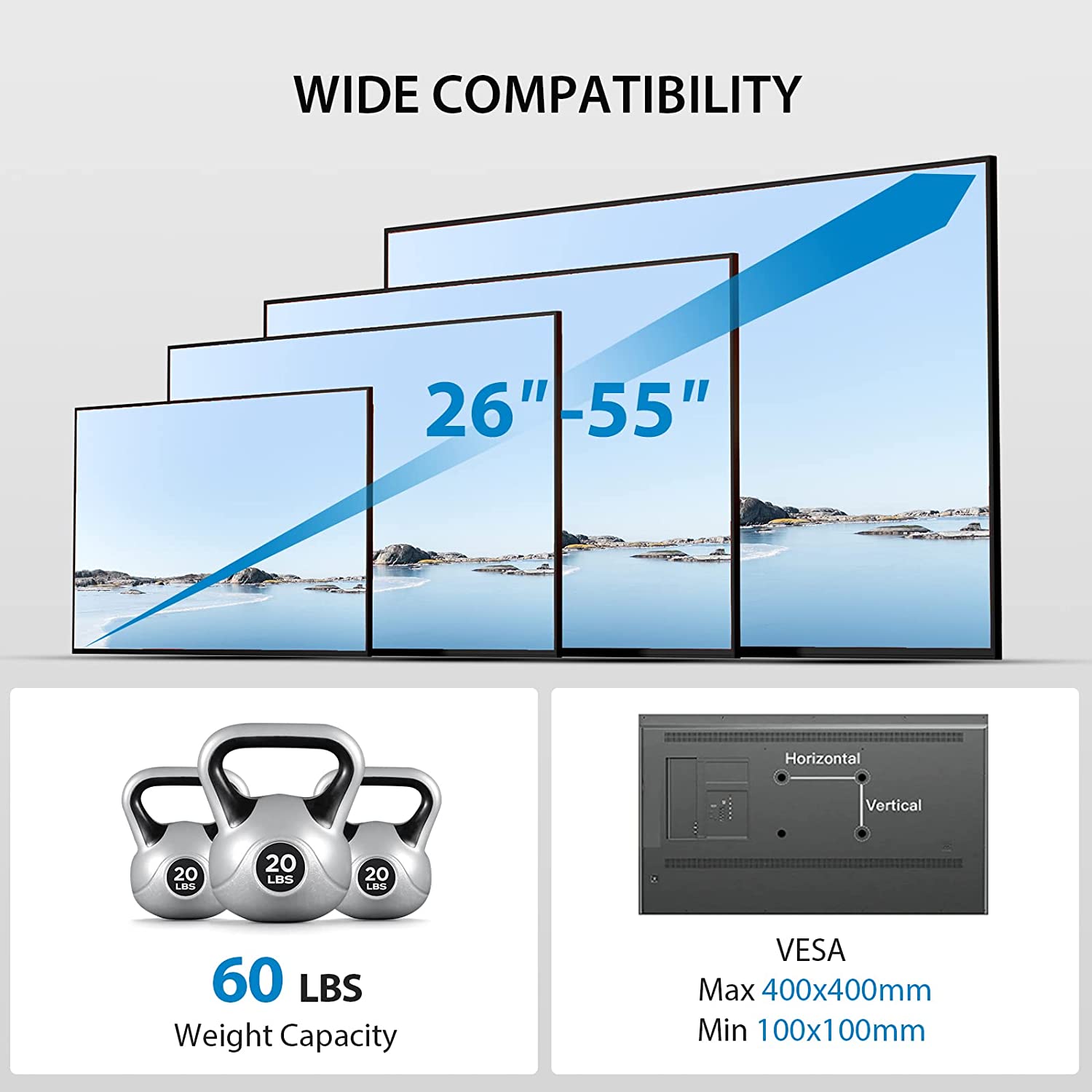

TV Size Range | 26" to 55" |
Maximum TV Weight | 60 lbs |
VESA Range | 100x100mm, 100x200mm, 200x100mm, 200x200mm, 200x300mm, 200x400mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm |
Ceiling Types | Wood Joist, Concrete and Block |
Product Information | |
Swivel | 360° |
Tilt | +5°/-13° |
Ceiling Drop Rod Length Maximum | 30" |
Level | +/-3° |
Height Adjustments | 5 height adjustments between 26.6" to 36" |
Ceiling Plate Dimensions | 1.97" x 6.89" x 0.11" |
Package Weight | 5.71lbs |
Package Dimensions | 17.36" x 9.41" x 2.52" |
