Fits TVs
37" to 75"
VESA Range
200x100mm to 600x400mm
Extension
14.84"
Tilt +5°/-15°
Swivel +/-45°
Weight Capacity
132 lbs

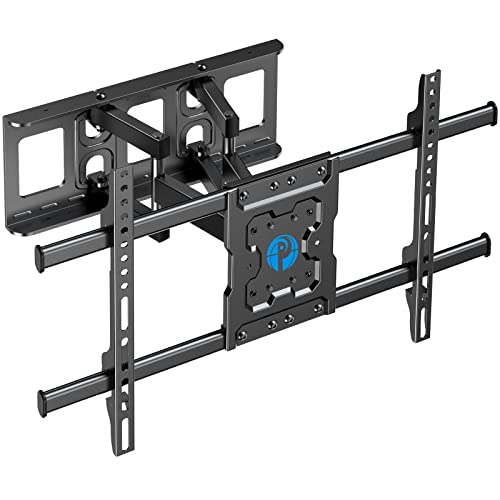

1. PILFK1 full-motion design enables you to adjust the angle of your TV based
on your viewing position in the room.
2. Low-profile design extends from 3" to 14.84" from the wall.
3. Maximum flexibility tilt +5°/-15°, swivels +/-45° (max. swivel angle depends on TV size) and level adjusts +/-3° for perfection tweaking.
4. Universal VESA mounting systems compatible from 200x100mm to 600x400mm.
5 Dual articulating arms for added strength to hold your TV. weight capacity 132 lbs.
6. Mounting hardware and a detailed illustrated installation manual is included.
7. 5-year Limited warranty and professional US-based Product Support.
| Product Compatibility | |
| Brand | PIPISHELL |
| Model Number |
PILFK1
|
| Type | Full Motion |
| TV Size Range |
37" to 75"
|
| Maximum TV Weight | 132 lbs |
| VESA Range | 200x100mm/200x200mm/200x300mm/200x400mm/300x200mm/300x300mm/300x400mm/400x200mm/300x400mm/400x300mm/400x400mm/500x300mm/600x200mm/600x400mm |
| Wall Type | Wood Studs 12",16"on Center, Concrete and Block Walls |
| Product Information | |
| Swivel | +/-45° |
| Tilt | +5°/-15° |
| Profile | 3" |
| Extension | 14.84" |
| Level | +/-3° |
| Wallplate Dimensions | 17.13" x 6.89" |
| Product Weight | 12.02 lbs |
| Product Dimension | 9.61" x 6.22" x 2.4" |
Note: Don't use electric drill.
Note: This TV wall mount fits for use in wood stud and solid concrete wall. DO NOT install into drywall alone.
